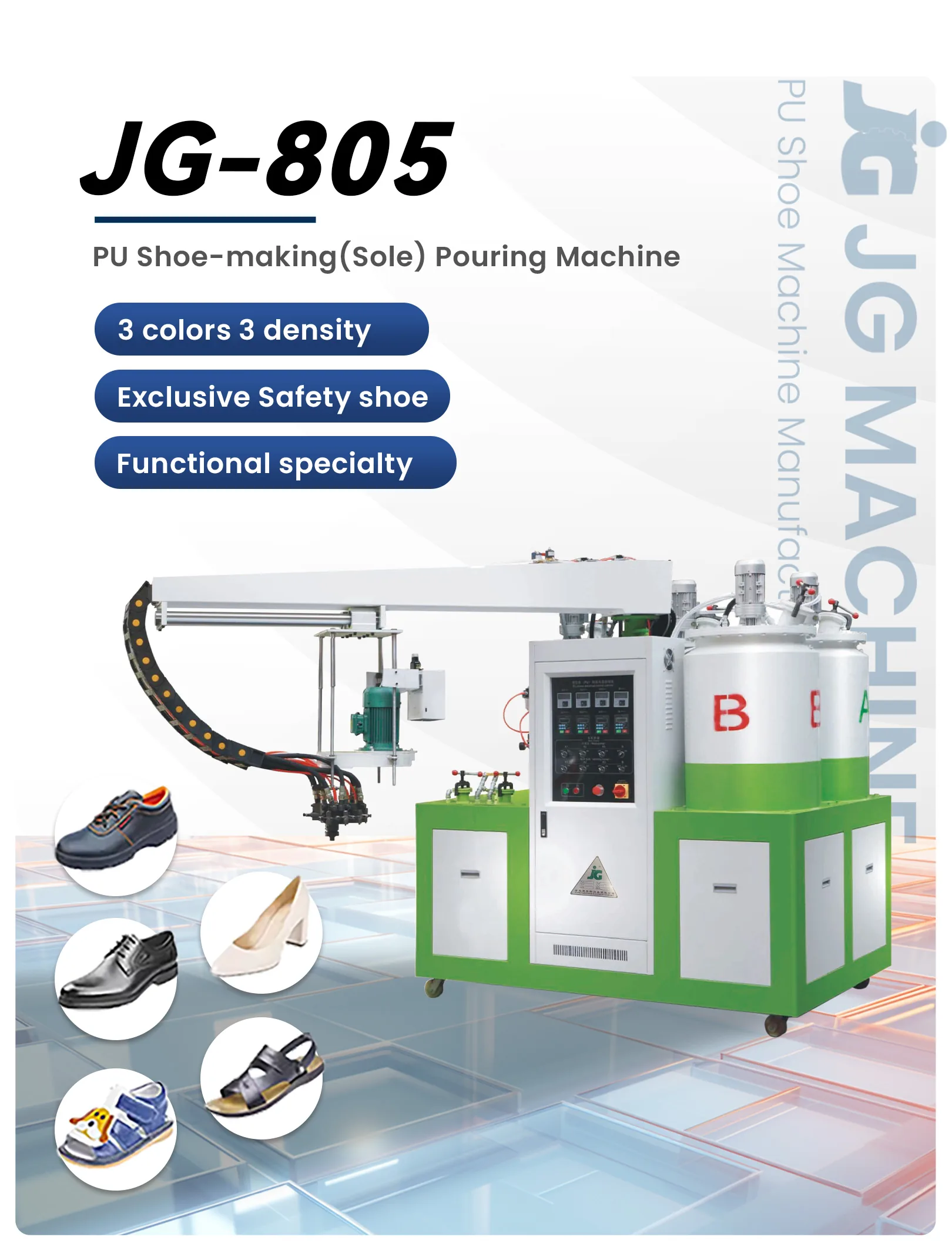

JG-805 PU Sole Pouring Machine
4Tanks 3A1B 3Colors/3Density
Can Make 3 color and 3 density foaming
shoe sole by mixing with A and B raw material

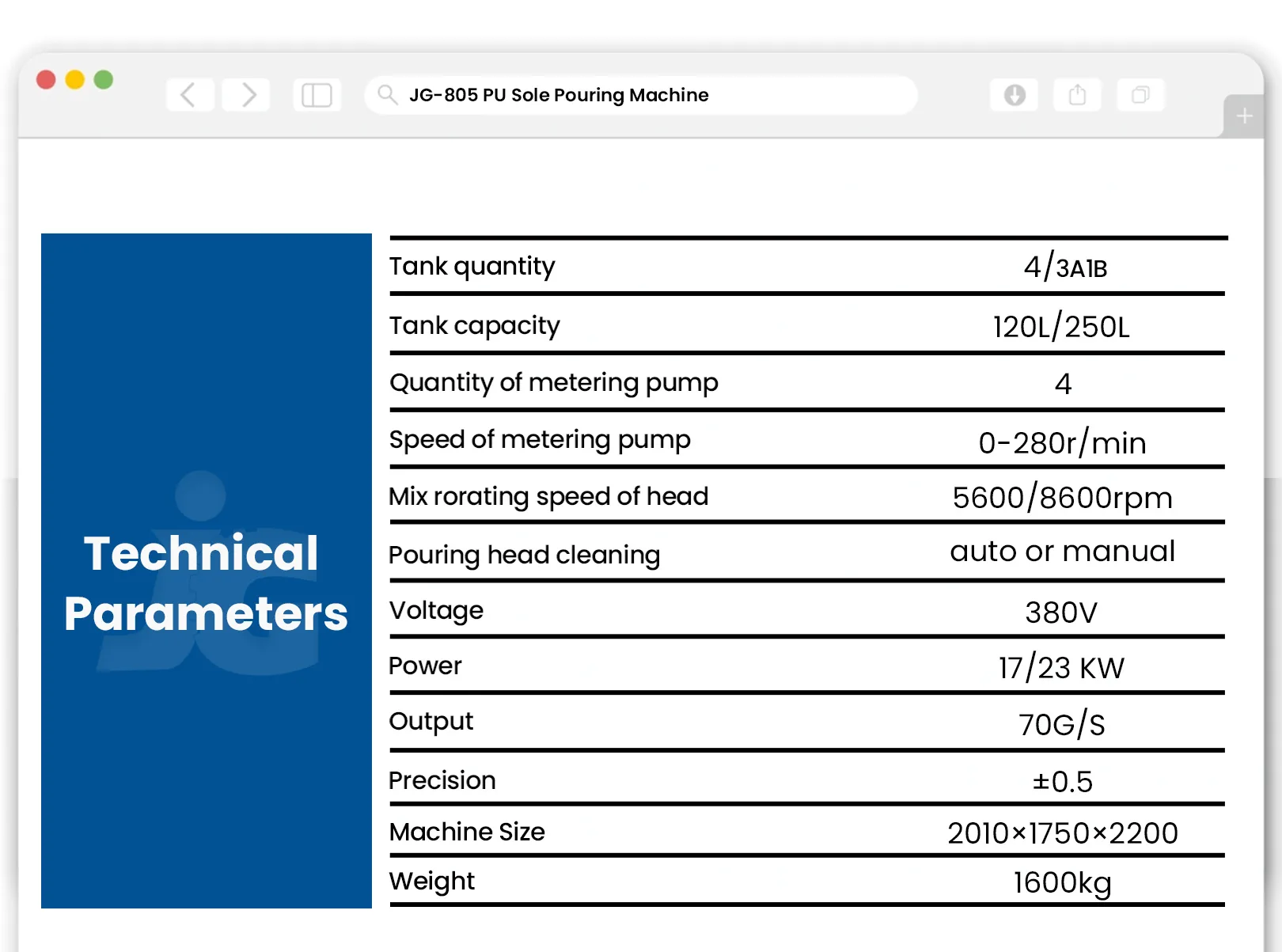

Machine Technical parameters
Characteristics
Have 3A tank and 1B tank, can make 3 color and 3 density foaming shoe sole by mixing with A and B raw material.
Under different proportion of A and B raw material,can get different properties polyurethane sole material. The mix head with five needle which can work independently.
Heating system with oil circulation, make heating more fast and more efficient in power saving.
Self-developed PLC, with function of setting time, real-time monitoring and so on.
The speed of metering pump use frequency conversion control,with advantages of energy saving and keep the rotational speed when voltage instability.
Our shoe sole prouing machine advantage
Shoe sole prouing machine production process
· 304 stainless steel inner
· Heating layer
· Heat preservation layer
· High efficiency
· Energy saving
Raw material tank
Control cabinet
· Use of Schneider low-voltage electrical appliances
· Reliable quality
· PLC module controls the material temperature
· Temperature is always under control
· More constant temperaturemore energy efficient and safer
· Frequency conversion
· Energy saving
· Keep the rotational speed when voltage instability
· Adjustable speed
· Oil-free metering pump motors
Metering pump
PLC controller
· Independently developed PLC controller
· Functions of setting data
· PLC module controls the material temperature
· Real-time monitoring
· Display and so on
· CNC processing and production
· High precision
· Stable performance
· High hardness
· Using never wear needle valve independent work of the
mixing head structure
Pouring head
· Flexible adjustment
· Can be lifted, moved back,forth, left, right
· Easy operation
· Operating comfort
Liftable head frame
Principle of machine operation
